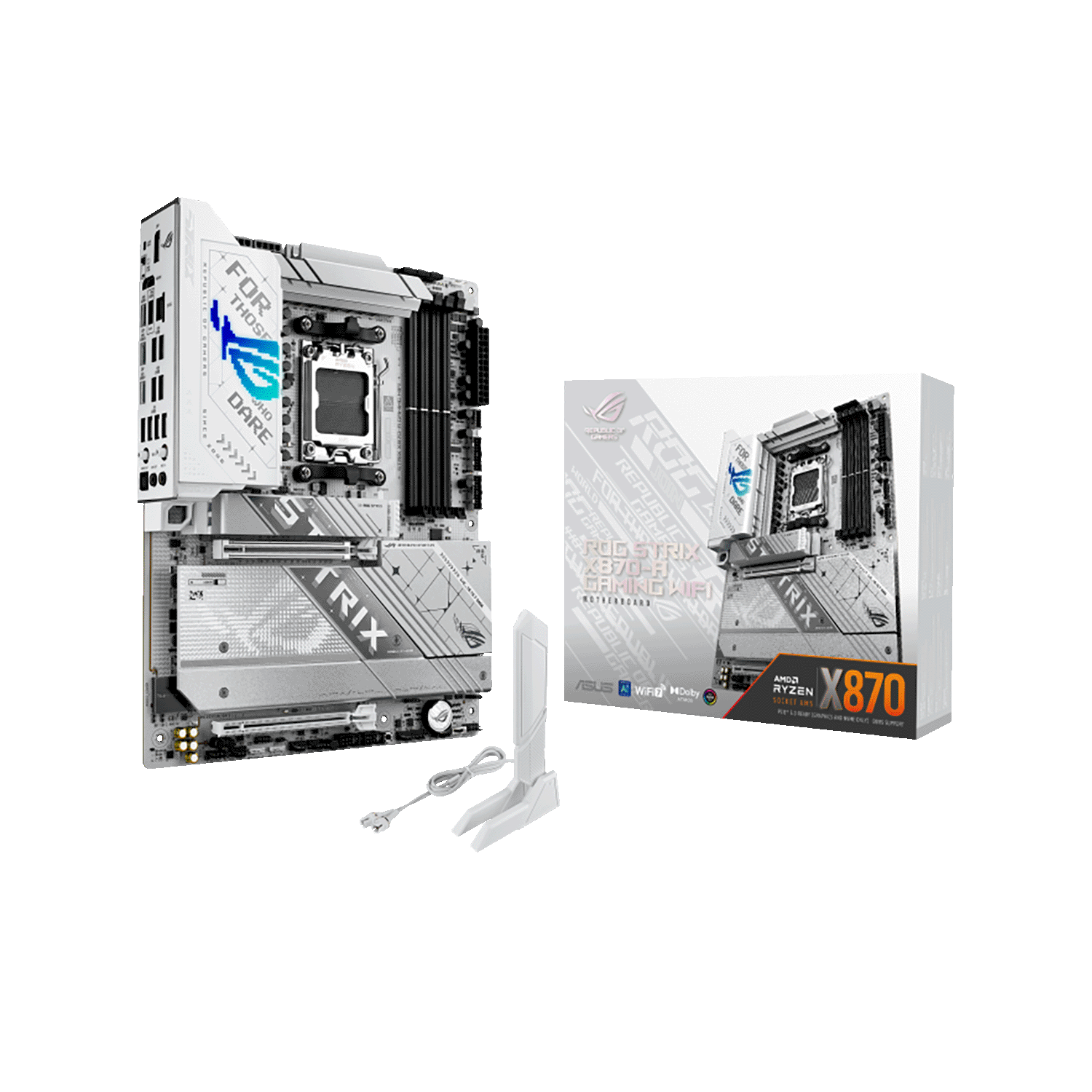

ASUS ROG STRIX x870-A Gaming WIFI

Description

Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4® ports, and WiFi 7, it’s the ultimate blend of style and performance.

Specification

CPU Support : AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors* (*Refer to www.asus.com for CPU support list.)

Chipset : AMD X870

Memory : 4 x DIMM slots, max. 192GB, DDR5, supports up to 8000+ MT/s (OC) with Ryzen™ processors, ECC and Non-ECC, unbuffered memory. Dual channel memory architecture. Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP).

Graphics Output : 1 x DisplayPort (max 8K@30Hz), 1 x HDMI™ port (4K@60Hz), 2 x USB4® (40Gbps) ports with USB Type-C® display outputs.

Expansion Slots : 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**, 1 x PCIe 4.0 x16 slot (supports x4 mode). **Specifications vary by CPU types.

Storage : Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports. M.2_1 supports PCIe 5.0 x4 mode; M.2_2 supports PCIe 5.0 x4 mode; M.2_3 and M.2_4 support PCIe 4.0 x4 mode. AMD RAIDXpert2 Technology supports RAID configurations.

Ethernet : 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard.

Wireless & Bluetooth : Wi-Fi 7 (802.11be), 2×2, supports 2.4/5/6GHz frequency bands with up to 2.9Gbps transfer rate. Bluetooth® v5.4.

USB Ports : Rear: 12 ports total (2 x USB4® (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps). Front: 9 ports total (1 x USB 20Gbps, 2 x USB 5Gbps headers, 2 x USB 2.0 headers).

Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, supports multi-streaming, high quality 120 dB SNR stereo playback output. Rear optical S/PDIF out port, premium audio capacitors.

Back Panel I/O Ports : 2 x USB4® (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI™, 1 x Intel® 2.5Gb Ethernet, 2 x audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button.

Internal I/O Connectors : Includes multiple fan headers, power connectors, storage-related connectors, and USB headers.

Special Features : Extreme Engine Digi+, ASUS Q-Design, Aura Sync, comprehensive software suite including Armoury Crate, Fan Xpert 4, and more.

BIOS : 256 Mb Flash ROM, UEFI AMI BIOS with AI Overclocking Guide and ASUS EZ DIY features.

Form Factor : ATX Form Factor (12 in x 9.6 in / 30.5 cm x 24.4 cm)

Operating System : Windows 11

Accessories : Includes SATA cables, cooling kit, ASUS WiFi Q-Antenna, M.2 Q-Latch and Q-Slide packages, ROG stickers, and quick start guide
