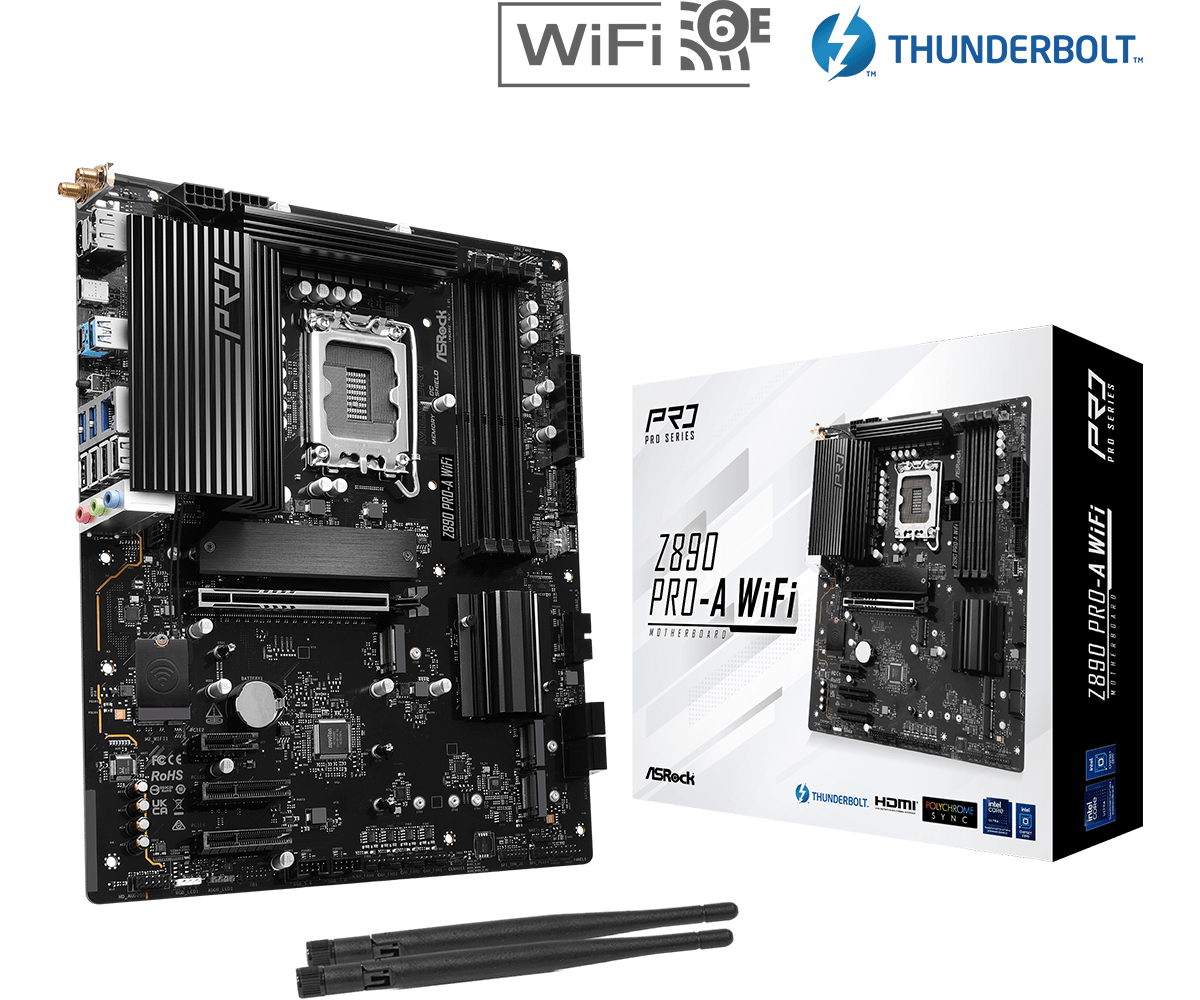

ASRock Z890 Pro A WiFi

Description

Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)

16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT

4 x DDR5 DIMMs

Supports Dual Channel, up to 9066+ (OC)

1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1

Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 Hyper M.2 (PCIe Gen4x4 & SATA3)

1 Thunderbolt™ 4 Type-C (Rear)

2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),

1 USB 3.2 Gen2 Type-A (Rear),

6 USB 3.2 Gen1 (2 Rear, 4 Front),

8 USB 2.0 (4 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe Wi-Fi 6E + Bluetooth

Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
